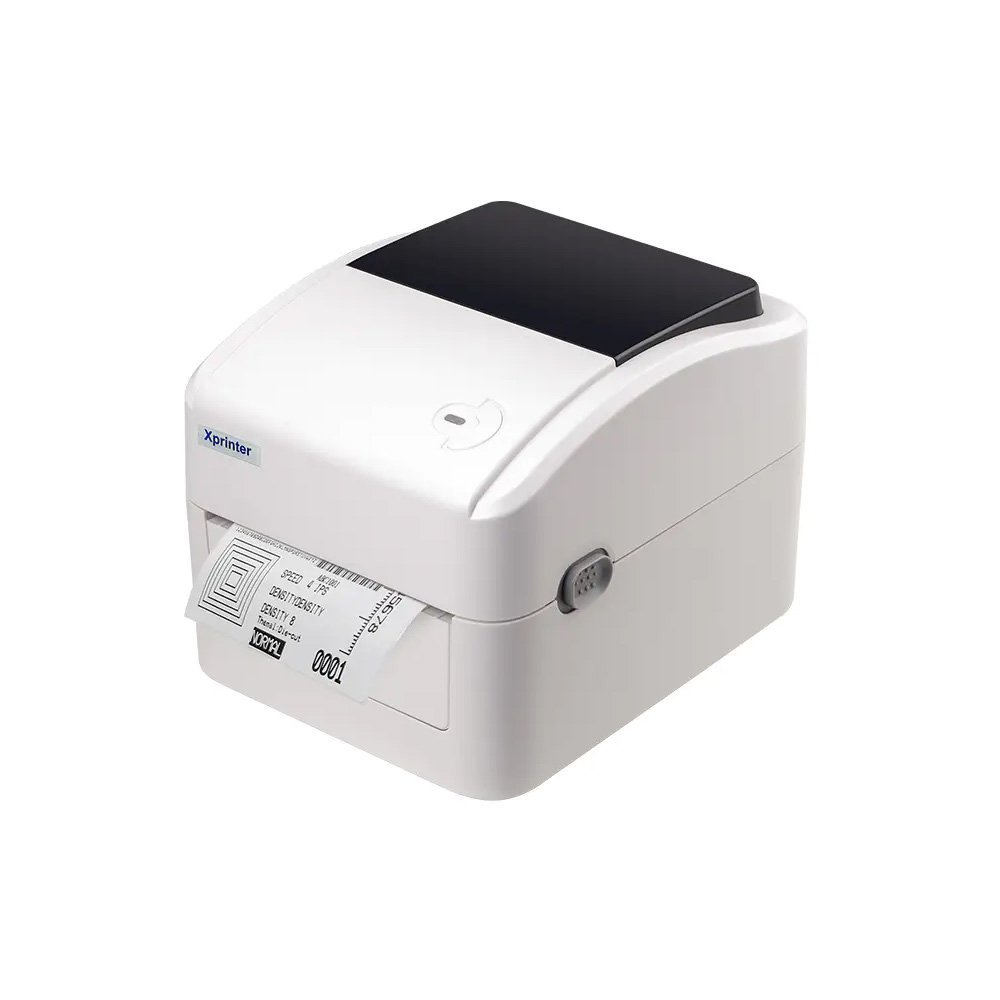

Xptinter Label XP-420B

Specification

Model: XP-420B

Resolution: 203 DPI

Printing method: Direct Thermal

Max.print speed: 152 mm (6″) / s Max

Max.print width: 108 mm (4.25”)

Max.print length: 1778 mm

Media

Media type: Continuous, gap, black mark, fan-fold and punched hole

Media width: 25.4 mm ~ 115 mm

Media thickness: 0.06~0.254 mm (2.36~10mil)

Media core diameter: 25.4 ~ 76.2 mm (1 “~ 3 “)

Label length: 10 mm ~1778 mm

Performance Features

Processor: 32-bit CPU

Memory: 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB

Interface

Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card

Fonts/Graphics/Symbologies

Internal fonts: 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software

1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11

2D bar code: PDF-417, Maxicode, DataMatrix, QR code, Aztec

Rotation : 0°、90°、180°、270°

Emulaion: TSPL、EPL、ZPL、DPL

Physical Features

Dimension: 215 mm (L) x 178 mm (W) x 155 mm (H)

Weight: 1.31 kg

Software

Driver: Windows/ Linux/ Mac

SDK: Windows/ Android/ iOS

Power supply

Input: AC 110-240V

Output: DC 24V 2.5A

Environmental Conditions

Operation environment: 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing

Storage environment: -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
