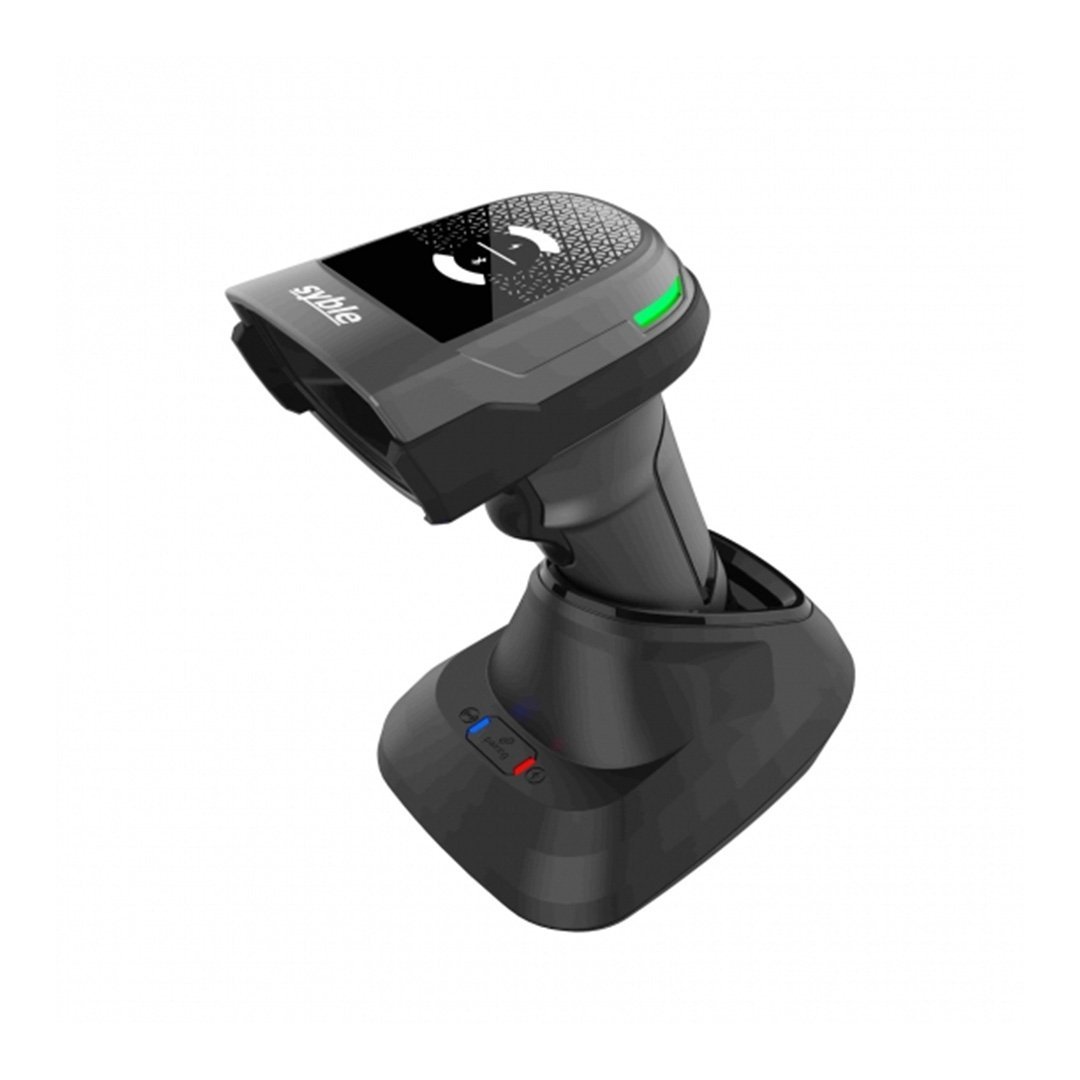

Barcode Reader Wireless Syble XB – D66T

Performance

Scanning technology: 2D CMOS image sensor (640 × 480 pixels) with red aiming and white illumination LEDs

1D codes: Codabar, Code 39/32 (Pharma), I2/5 (Interleaved/Industrial/IATA), Code 93, Code 11, Code 128/GS1‑128, UPC‑A/E, EAN‑8/13, MSI, GS1 DataBar (Omni, Limited, Expanded), HK/China Post, Korea Post

2D codes: QR, DataMatrix, PDF417/Micro, MaxiCode, Aztec, CodeBlock A/F, GS1 Composite, HanXin

Scan field of view (approx.):

Code 39 (5 mil): 7–16 cm

Code 39 (13 mil): 7–32 cm

QR (15 mil): 3–18 cm

Code 128 (20 mil): 6–35 cm

Scan angle: Yaw ±65°, pitch ±65°, 360° rotation

Print contrast min.: 20%

Error rate: ≤ 1 misread in 5 million scans

Scan speed: Approximately 4 m/s (≈ 120 FPS)

Connectivity & Modes

Wireless: Dual-mode – Bluetooth (classic & BLE) and 2.4 GHz (via dedicated USB receiver), with up to 100 m open-air range

Wired: USB‑HID and USB‑COM (via base)

Pairing: One‑click pairing; can link one scanner to one receiver or directly to Android/iOS Bluetooth devices

Storage modes:Offline and inventory modes store data locally (capacity ~200K characters) when disconnected

Battery & Power

Battery type: Detachable 2,200 mAh lithium pack

Operating time: ~7 hours continuous scanning

Charging: Type‑C via smart touch cradle/base or cable; full charge in ~3 hours

Standby current: ≥ 35 mA; working current ≥ 300 mA

Physical & Environmental

Dimensions: 174.8 × 83.5 × 65.7 mm

Material: ABS+PC plastic

Weight: approx. 318 g (with battery)

Cable length: 1 m (for base)

Operating temp: –20 °C to 50 °C

Storage temp: –40 °C to 70 °C

Humidity: 5%–95% RH (non‑condensing)

Ambient light tolerance: Up to 100,000 lux

Drop resistance: Survives multiple 1.5 m drops to concrete
